JUMBLEQ — Faderless 2CH Digital Mixer

FADERLESS 2-CHANNEL DIGITAL MIXER

Shape sound.
One press at a time.

Channel faders, reimagined as magnetic switches.
Intuitive and endlessly expressive.

Discover JUMBLEQ ↓View on GitHub ↗

01 / CONCEPT

The fader,reimagined.

JUMBLEQ is a 2-channel digital mixer that reimagines a pair of channel faders as six magnetic switches. Each switch responds continuously to how far it is pressed, while multi-switch combinations enable fast, precise cuts and open up entirely new ways to play.

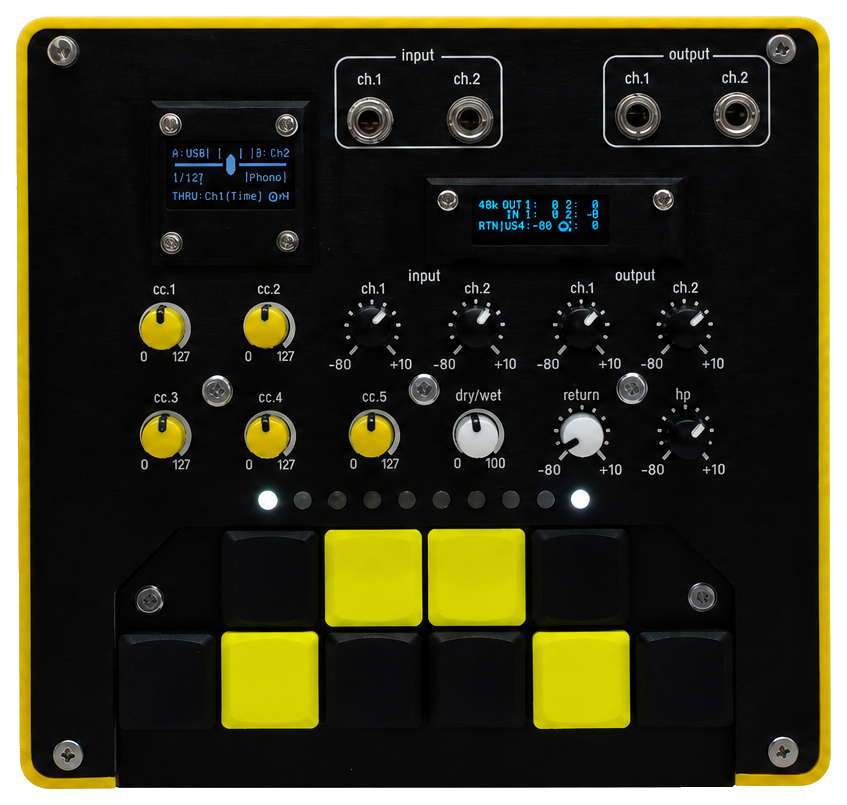

Front view of the JUMBLEQ beta prototype

02 / FEATURES

Set it up,
your way.

01

Faderless Performance

Ten magnetic switches open up new possibilities for faderless performance, while twelve knobs provide precise, hands-on control.

02

Flexible Routing

Independently assign one of four stereo sources—two analog stereo inputs and two stereo sources via USB—to each channel.

03

4-in / 4-out USB Audio

Record and play back via USB Audio Class 2.0 at 24-bit, 48 or 96 kHz.

04

Class-Compliant USB Audio

Connect to Windows, macOS, Linux, iPhone, iPad, and Android devices—no dedicated driver required.

03 / CONTROLS

From faders.
To magnetic switches.

Magnetic switches replace traditional faders. Press FADE UP or FADE DOWN to shape the volume in a new, tactile way.

FADER CURVE

Not just on or off.
Continuously variable.

Volume follows the full travel of each magnetic switch. Tune each channel independently from a late-rise response, through linear, to the razor-sharp early rise needed for scratching.

CONTINUOUS ADJUSTMENT

MULTIPLE SWITCHES

Up to three keys.
Faster cuts.

Play up to three keys at once using multiple fingers for fast, precise cuts—including two-click flares and crab scratches that are difficult to achieve by repeatedly tapping a single key.

MIDI

More control,
without letting go.

Four of JUMBLEQ’s ten magnetic switches can send MIDI Control Change (CC) or Note On/Off messages. Use them to control effect parameters and other functions in your DAW or DJ software without interrupting your faderless performance.

AUDIO SEND / RETURN & DVS

Analog meets
digital.

USB Send/Return lets you process audio from turntables, CDJs, or samplers on a computer. DVS using control vinyl is also supported, giving you the flexibility to build a wide range of performance setups.

Read the full operation guide ↗

MAGNETIC SWITCHES.
NEW WAYS TO PLAY.

04 / CONFIGURATOR

Make it yours,right in your browser.

The browser-based JUMBLEQ Configurator lets you switch between line and phono inputs, route audio, configure DVS, shape fader curves, and assign MIDI behavior.

Open Configurator ↗Chrome, Edge, or another browser with Web MIDI support is recommended

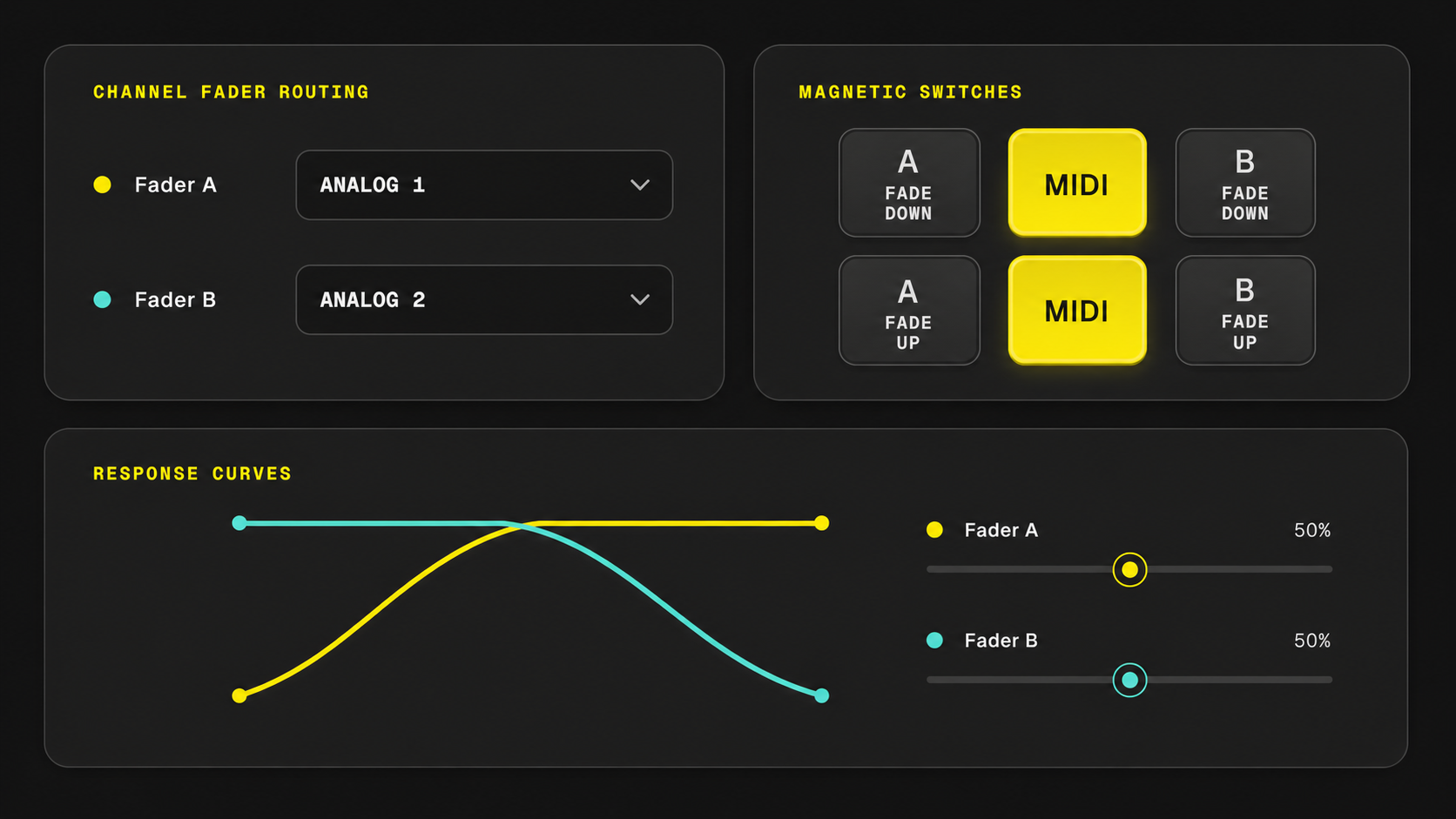

JUMBLEQ Configurator showing routing, magnetic-switch, and fader-curve settingsOPEN WEB APP ↗

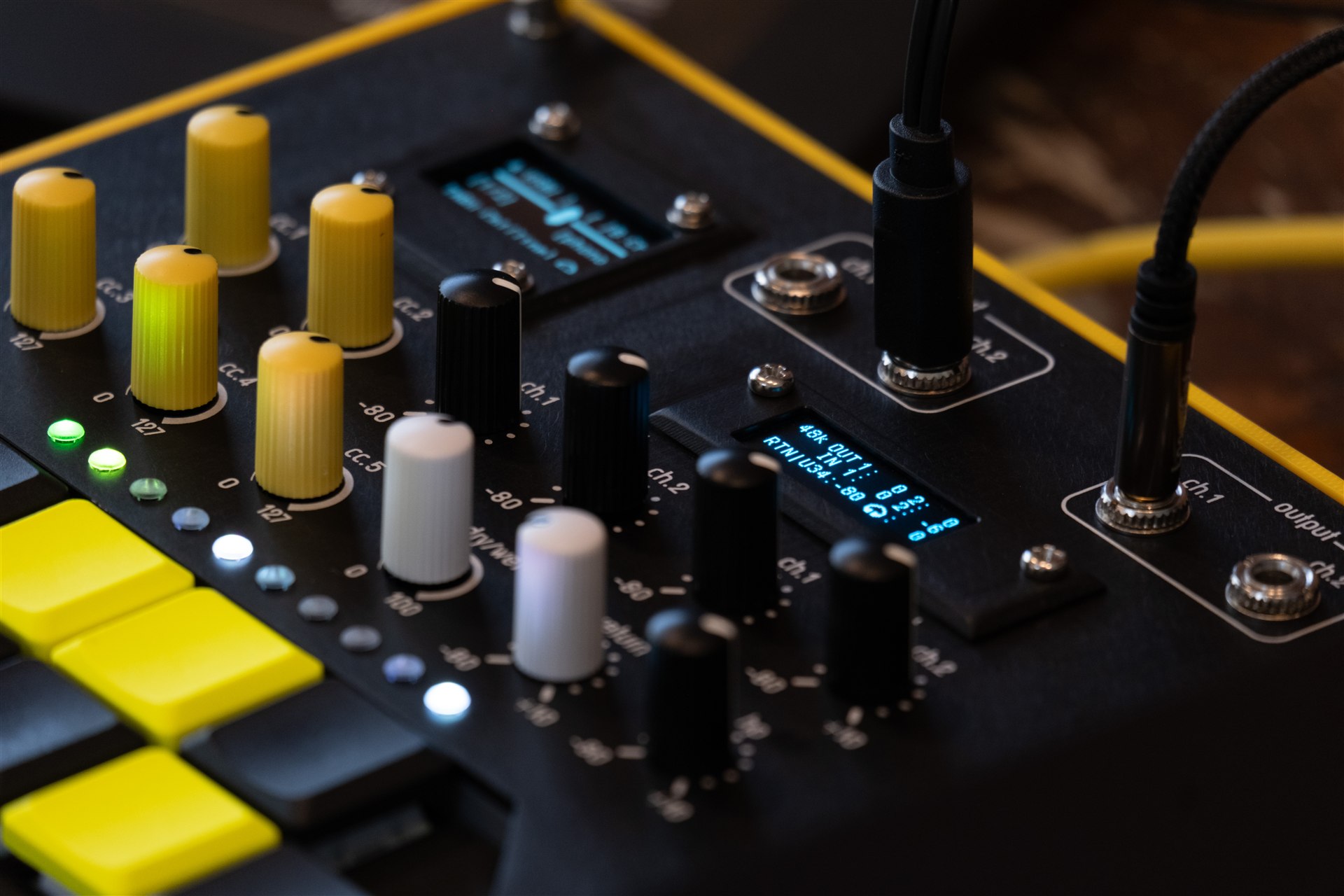

Close-up of JUMBLEQ knobs, OLED displays, and audio connections

05 / SPECIFICATIONS

Creative freedom.
Built to perform.

ANALOG I/O
2 STEREO IN / 2 STEREO OUT + 1 HEADPHONE OUT3.5 mm stereo jacks (Stereo Thonkiconn)DETAILED AUDIO SPECIFICATIONS ↗
USB-C AUDIO / MIDI INTERFACE
2 STEREO IN / 2 STEREO OUT + MIDI I/O24-bit / 48 or 96 kHz / class-compliant
RGB LED METERS
2 × 5-SEGMENT VU METERSChannel Fader A/B level & position indicators
OLED DISPLAYS
128 × 64 + 128 × 32Routing, gain & system status
DIMENSIONS
W 149.2 × D 141.5 × H 42.4 mm (56.7 mm overall height)
UPDATE
UF2 BOOTLOADERUpdate via drag and dropFIRMWARE UPDATE GUIDE ↗

Specifications are based on a beta prototype under development and are subject to change without notice.

06 / GET STARTED

Go deeper
with JUMBLEQ.

01Read the operation guideOPERATION GUIDE↗02Update the firmwareFIRMWARE↗03Join the projectOPEN SOURCE↗
